Sometimes you may want something more sophisticated than builtin cells. For that, you can use a custom cell.

Suppose you want a cell that shows a bar chart. Let’s start by making a type for it:

type chartCell struct {
	devcard.CustomCell

	data    []datum
	tempDir string
}

type datum struct {
	name  string
	value int
}

Note the embedded devcard.CustomCell in chartCell. It implements all three methods of the Cell interface: Type, Append, and Erase. The implementations of Append and Erase do nothing but panic when called; you need to provide your own implementations if you want to use dc.Append or dc.Erase. For this chart cell, this is not required—we’re going to implement our own appending function:

// addBar adds a bar to the right of the chart cell.
func (c *chartCell) addBar(name string, value int) {
	c.data = append(c.data, datum{name, value})
}

To render a custom cell, it first needs to be casted it into one of the builtin cells: HTMLCell, MarkdownCell, MonospaceCell, ValueCell, AnnotatedValueCell, ImageCell, or ErrorCell. For that, we need to implement Cast method:

func (cc *chartCell2) Cast() devcard.Cell {
	f, err := os.CreateTemp(cc.tempDir, "*.png")
	if err != nil {
		return devcard.NewErrorCell("chartCell error", err)
	}
	defer f.Close()
	err = cc.graph().Render(chart.PNG, f)
	if err != nil {
		return devcard.NewErrorCell("chartCell error", err)
	}

	img := devcard.NewImageCell(cc.tempDir)
	img.Append(f.Name())
	return img
}

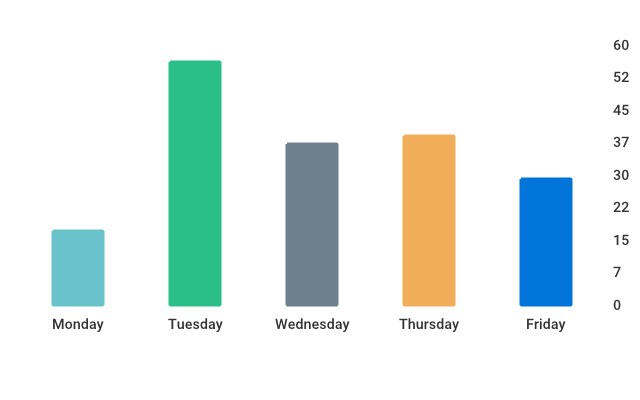

Now the chart cell is ready. Let’s add it to the devcard:

chart := &chartCell{
	tempDir: dc.TempDir,
	data: []datum{
		{"Monday", 17},
		{"Tuesday", 56},
		{"Wednesday", 37},
		{"Thursday", 39},
		{"Friday", 29},
	},
}
dc.Custom(chart)

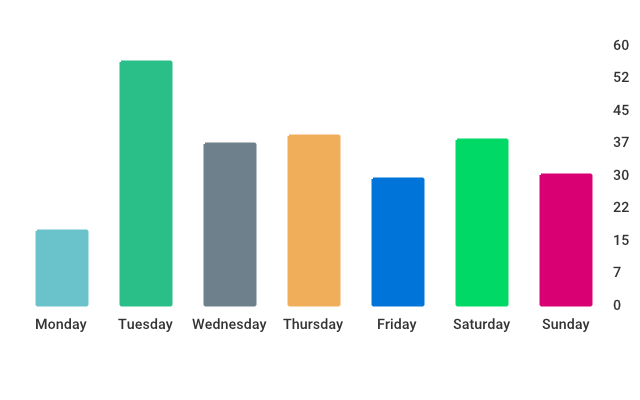

Since we opted out of imlementing Append method, we need to let the devcards app know when we’re altering our cell. It’s done by calling dc.Update:

chart.add("Saturday", 38)
chart.add("Sunday", 30)
dc.Update(chart)
